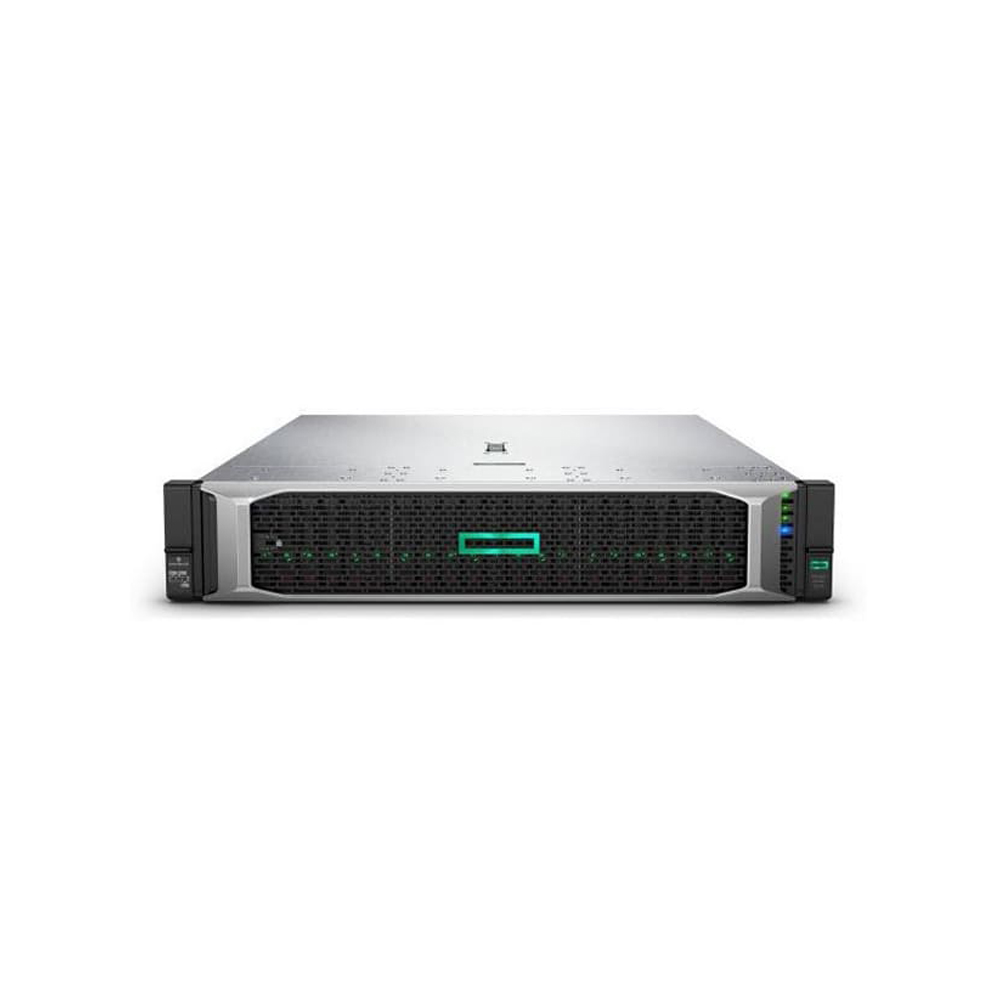

Server HPE DL380 Gen 10 8SFF- S4210R/ 32GB/P408I-A/800W/4y SVC-P24841-B21

Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P24841-B21
Manufacturer Website Address : WWW.HPE.COM
Product Name : Proliant Dl380 Gen10 – 2u Rack Mountable Server

Processor & Chipset :
Cpu : Intel Xeon Silver 4210r / 2.4 Ghz
Max Turbo Speed : 3.2 Ghz
Number Of Cores : 10-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache – 13.75 Mb
Cache Per Processor : 13.75 Mb

Memory :
Installed Size : 32 Gb / 1.5 Tb (max)
Technology : Ddr4 Sdram – Advanced Ecc
Effective Memory Speed : 2400 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 24 (total) / 23 (empty)
Features : Registered, Dual Rank, Slots 13 – 24 Are Available In Two-processor Configuration Only, HPE Smartmemory
Configuration Features : 1 X 32 Gb
Ram Supported : 3 Tb Load-reduced – Ecc ¦ 1.5 Tb Registered – Ecc ¦ 192 Gb Non-volatile – Ecc ¦ 6 Tb – HPE Persistent Memory – Optane Dc Persistent

Storage Controllers:
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication:
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : HPE 331i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Acpi Support, Pxe Support

Expansion / Connectivity :
Bays : 8 (total) / 8 (free) X Hot-swap 2.5in Sff

Slots : 1 (total) / 1 (free) X Microsd Card (internal) ¦ 1 (total) / 1 (free) X Pcie 3.0 X8 – Full-length, Full-height ¦ 1 (total) / 1 (free) X Pcie 3.0 X16 – Full-length, Full-height ¦ 1 (total) / 1 (free) X Pcie 3.0 X8 – Half-length, Full-height ¦ 1 (total) / 0 (free) X Flexiblelom

Interfaces :
1 X HPE Ilo – Type A (1 In Front) ¦ 5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal) ¦ 1 X HPE Ilo – Rj-45 (1 Rear) ¦ 4 X Lan (gigabit Ethernet) – Rj-45 (4 Rear) ¦ 1 X Vga (1 Rear)

Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
Width : 17.5 In
Depth : 26.7 In
Height : 3.4 In
Weight : 32.85 Lbs
