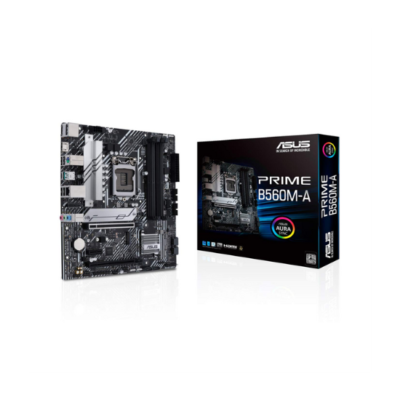

Mainboard ASUS PRIME B560M-A
2,190,000 ₫
– Chuẩn mainboard: Micro-ATX
– Socket: 1700 , Chipset: B560
– Hỗ trợ RAM: 4 khe DDR4, tối đa 128GB
– Lưu trữ: 6 x SATA 3 6Gb/s, 1 x M.2 NVMe, 1 x M.2 SATA/NVMe
– Cổng xuất hình: 1 x DisplayPort, 2 x HDMI
BO MẠCH CHÍNH MÁY VI TÍNH HIỆU ASUS LOẠI PRIME B560M-A
Intel® B560 (LGA 1200), PCIe 4.0,two M.2 slots, 8 power stages, Intel® 1 Gb Ethernet, DisplayPort, dual HDMI, rear USB 3.2 Gen 2 Type-C®, V-M.2 Key E slot for Wi-Fi , Aura Sync, Addressable RGB, mATX motherboard
- Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
- Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Stronger VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Memory overclocking: Support memory overclocking up to 5000 MHz
- ASUS OptiMem II: Careful routing for significantly reducing crosstalk, preserving signal integrity for improved memory stability
- Ultrafast connectivity: PCIe 4.0, Intel® 1 Gb Ethernet, rear USB 3.2 Gen 2 (Type-A &Type-C®) and V-M.2 Key E slot for Wi-Fi
| Chipset | B560 |
| khe cắm mở rộng | Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot(s)* – Intel® 11th Gen processors support PCIe 4.0 x16 – Intel®10th Gen processors support PCIe 3.0 x16 Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slots * Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory. |
| LAN – WiF | 1 x Intel® 1Gb Ethernet ASUS LANGuard |
| Cổng I / O phía sau | 2 x USB 3.2 Gen 2 port(s) (1 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 2 x HDMI™ port 1 x Intel® I219-V 1Gb Ethernet port 1 x V-M.2 slot (Key E) 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Cổng I/O ở trong | Fan and Cooling related
1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
| Chuẩn thiết kế ATX | microATX 24.4cm x 23.4cm |
| Bộ xử lý | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chuẩn RAM | DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Đồ họa | * Graphics specifications may vary between CPU types.
** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. *** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. |
| Ổ Cứng | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports * M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled. |
| MainBoard | Asus |
